Non-rising Stem Resilient Seated Gate Valve

iValve Resilient Seated Gate Valve with ISO top flange, which is designed and manufactured for use in water, waste water, and sewage. Main usage is for isolation purposes. Full bore design makes it possible to be used bi-directionally and the fluid could clean the sealing surface area every time the valve is opened.

Main Features

• Huge convenience in daily water-using and repairing
• Class A sealing (ZERO LEAKAGE)
• 100% testing before packing and delivery.
• Completely free and full bore self-cleaning & low-pressure loss.
• Clockwise closing (CWC) as standard, anticlockwise closing upon request.

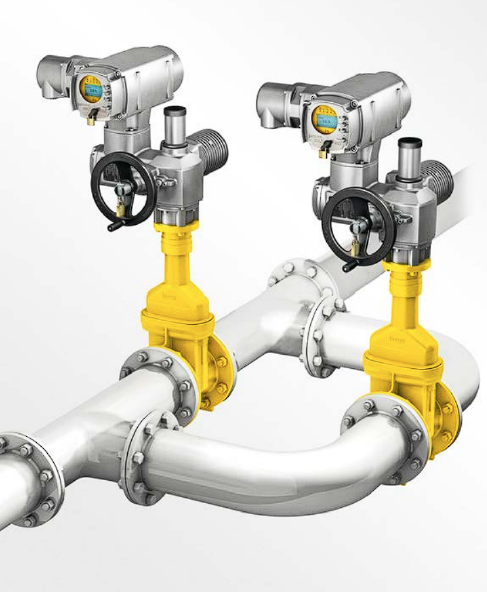

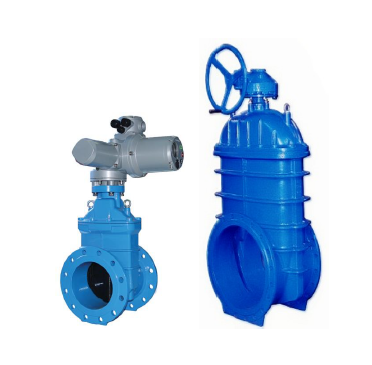

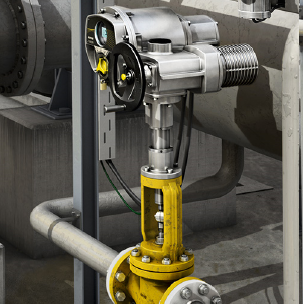

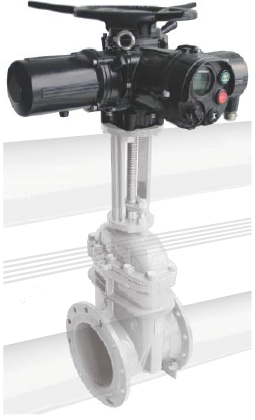

• Operation: Manual handwheel, Square Cap, Extension Spindle, Gear Box, Electric Actuator, Pneumatic Actuator.
• Bonnet bolts are in Galvanized Carbon Steel, and sealed with hot melt to prevent corrosion. Other materials upon request.
• O-ring bonnet gasket wraps each bolt to prevent corrosion.
• Linear sealing design provides better sealing & lower closing torque.
• WRAS approved for drinking water.

Standards

• Hydraulic tests according to EN-12266-1, Class A
• Designed to EN-1074
• Flanges to EN-1092-2, BS4504

Service Fields

• Water and neutral liquid applications
• Main transmission pipelines
• Irrigation system
• Fire fighting
