Universal worm gearboxes UZP

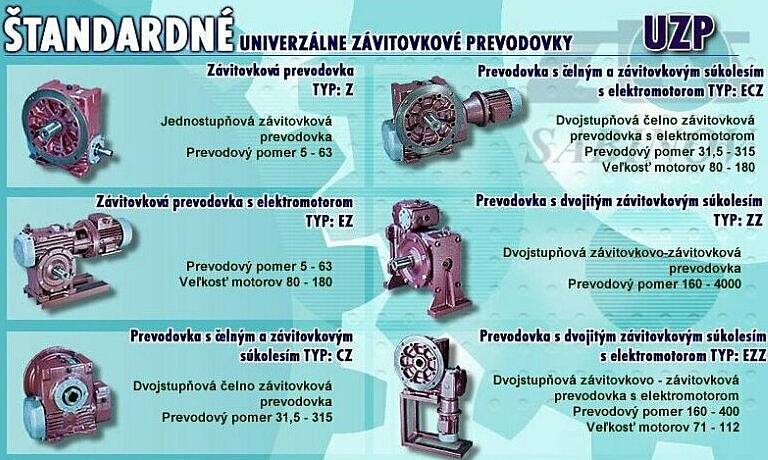

Mechanical worm and combined worm gearboxes that consist of six lines:

Type Z - gearbox – worm

Type CZ - prevodovka s čelným a závitovkovým súkolesímgearbox with spur and worm gear set

Type ZZ - gearbox with double worm gear set

Type EZ - gearbox – worm with electric motor

Type ECZ - gearbox with spur and worm gear set with electric motor

Type EZZ - gearbox with double worm gear set with electric motor

Use of gearboxes is universal. They allow decrease of rotation frequency of prime mover, in case of deliveries with electric motor, decrease of rotation frequency of electric motor's rotor to required rotation frequency of prime mover’s shaft at coincident increase of torque at constant gear ratio.

Gearboxes may be operated in humid and dusty environment. However it has to be chemically unobjectionable, non-aggresive, unless it will unfavourably influence their correct function in both directions of shaft rotation.

Operation of gearboxes and gearboxes with electric motor is provided for by diverse version of slow-running shaft, different way of mounting to base or driven machinery with a possibility of variable arrangement of their fast-running shaft.

Cylindrical end of shaft is equipped with centring holes and thread according to STN 01 4917.

Springs on rolling ends of shafts are assigned to their diameters according to STN 02 2507.

UZP gearboxes are recognized for:

• smaller dimensions
• lower weight
• higher transmitted power
• better variability
• All types are offered in these versions:
• single-sided output shaft
• double-sided output shaft
• hollow shaft
• in foot or flanged version

What it brings to you:

• weight decrease of your devices
• decrease of energy demandingness
